Workshop Capabilities

Fabrication Excellence

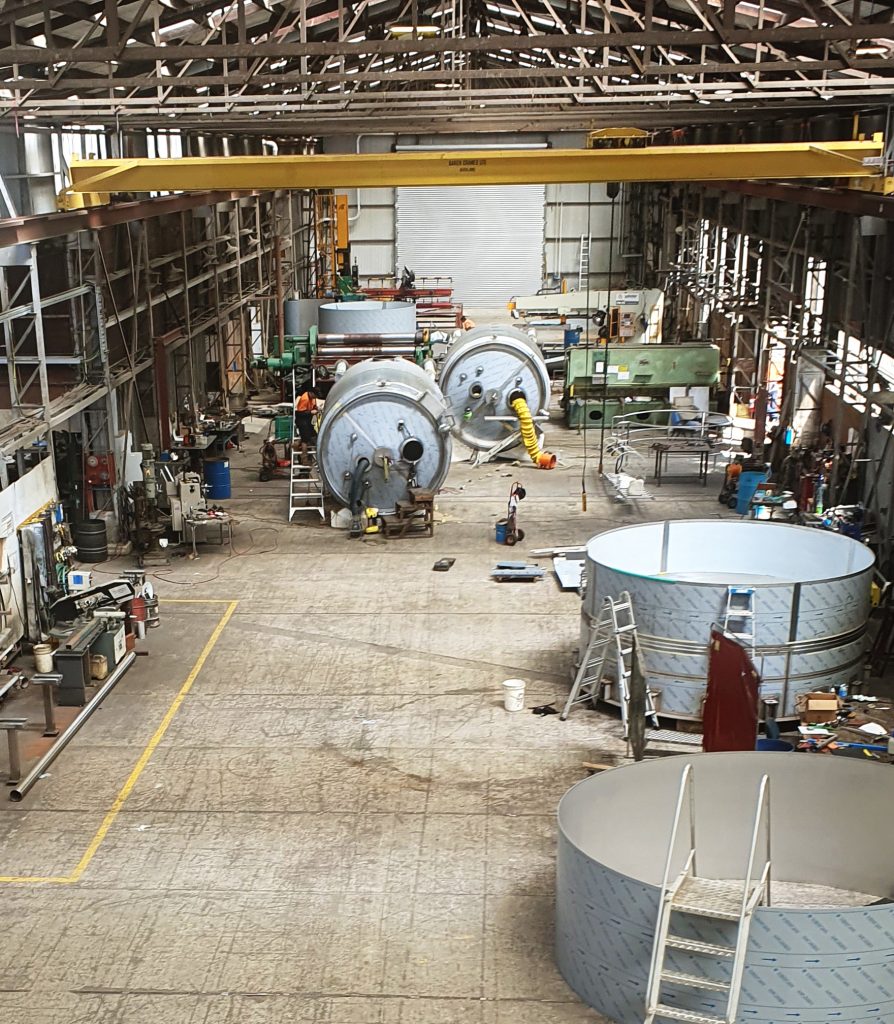

Our fabrication workshop has a total floor space of 3,500m² under the hook of two 6 tonne gantry cranes (12 tonne tandem lift) and one 3 tonne gantry crane. Welding and forming of stainless steel plate and sheet metal is the company’s core business with ongoing investment in plant, equipment and training to ensure our qualified team of tradesmen produce the high quality required to meet the relevant standards for all our customers.

Welding Standards:
Welding Standards:
AS/NZS Standard
ASME Standard

Specialist Workshop Equipment

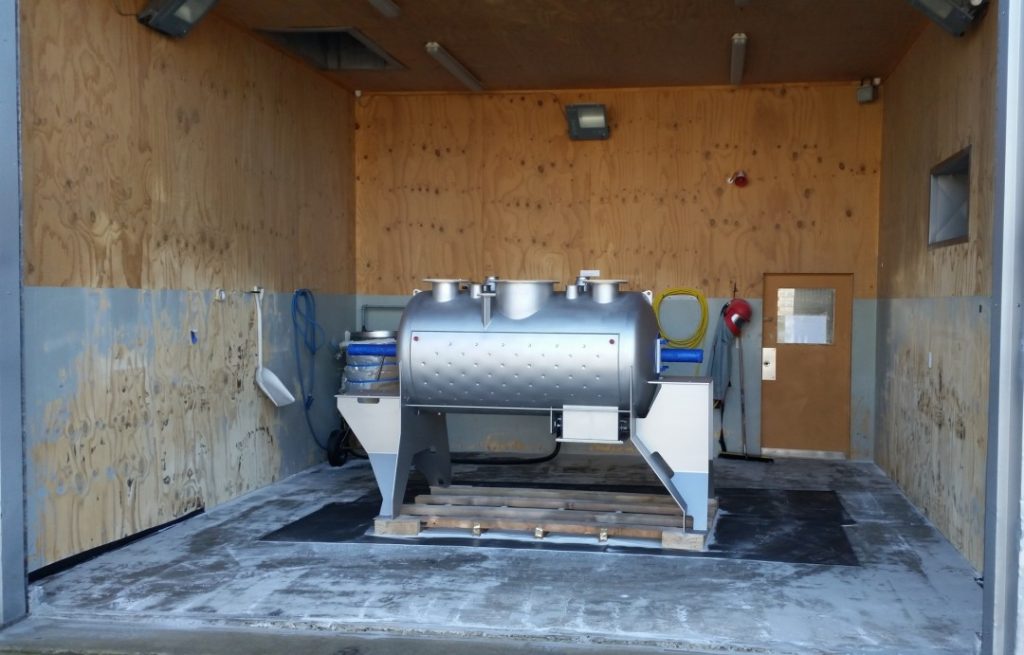

Stainless Steel Bead Blasting Booth

Capacity:

6,000mm x 6,000mm

A bead blasting booth provides HME with the capacity to produce a uniform matt finish on fabricated items resulting in reduced clean-up times.

At 6m x 6m with forklift access, the booth allows us to bead blast a wide range of stainless steel items of various sizes.

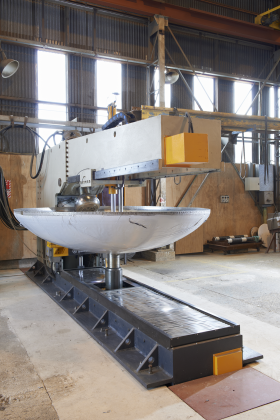

Sahinler FM25 Hydraulic
Flanging Machine

Capacity:

Based on 304 and 316 stainless steel

  • Radius of knuckle formers:
         50mm, 100mm, 200mm
  • Material thickness:
         3mm – 16mm
  • Maximum diameter:
         5,000mm
  • Minimum diameter:
         1,000mm
  • Centre hole:
         60mm

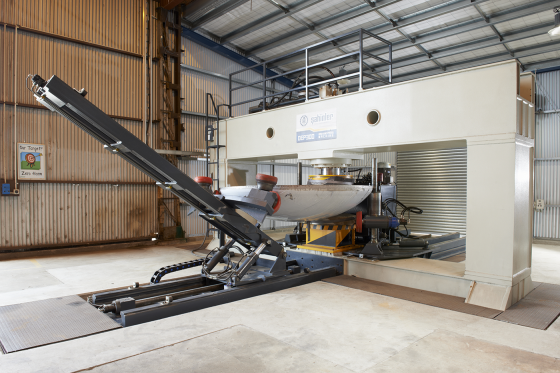

Sahinler DEP300 Dished End Press
with Automated Manipulater System

Capacity:

Based on 304 and 316 stainless steel

  • Radius of dye formers: 1500mm, 2000mm, 4000mm
  • Material thickness: 6mm – 16mm
  • Maximum diameter: 4,600mm
  • Minimum diameter: 1,600mm
  • Press power: 3000kn
  • Stroke: 500mm

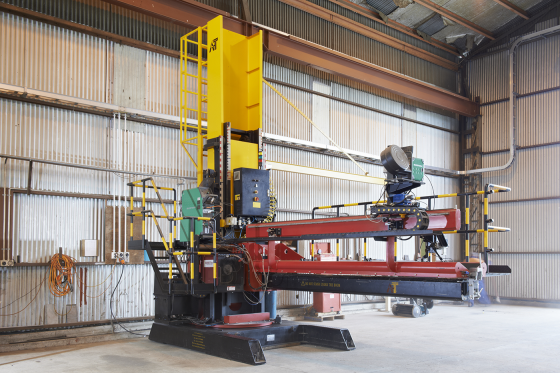

Migatronic PI350 Plasma
Seam Welder

Capacity:

Based on 304 and 316 stainless steel

  • Thickness: 2mm – 12mm
  • Length: 2,950mm

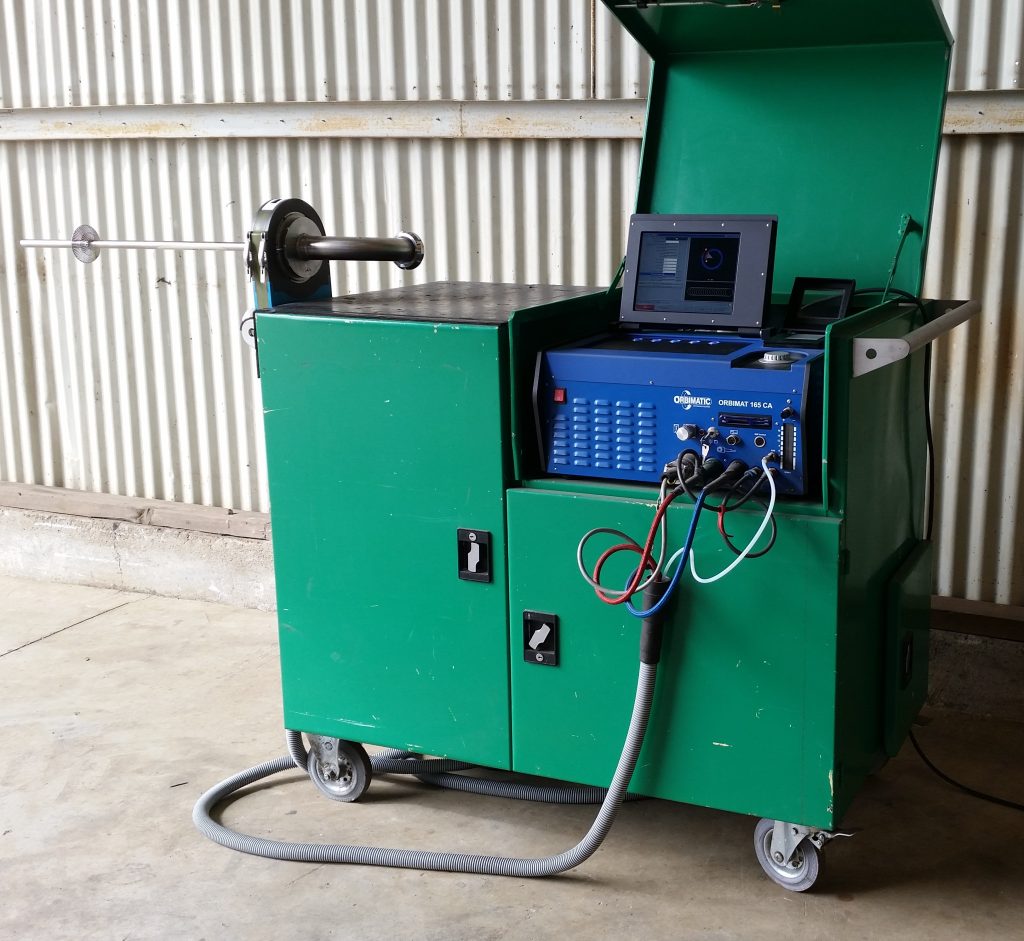

Orbital TIG Welder

Capacity:

Orbimatic 165 CA (22mm – 101mm tube)

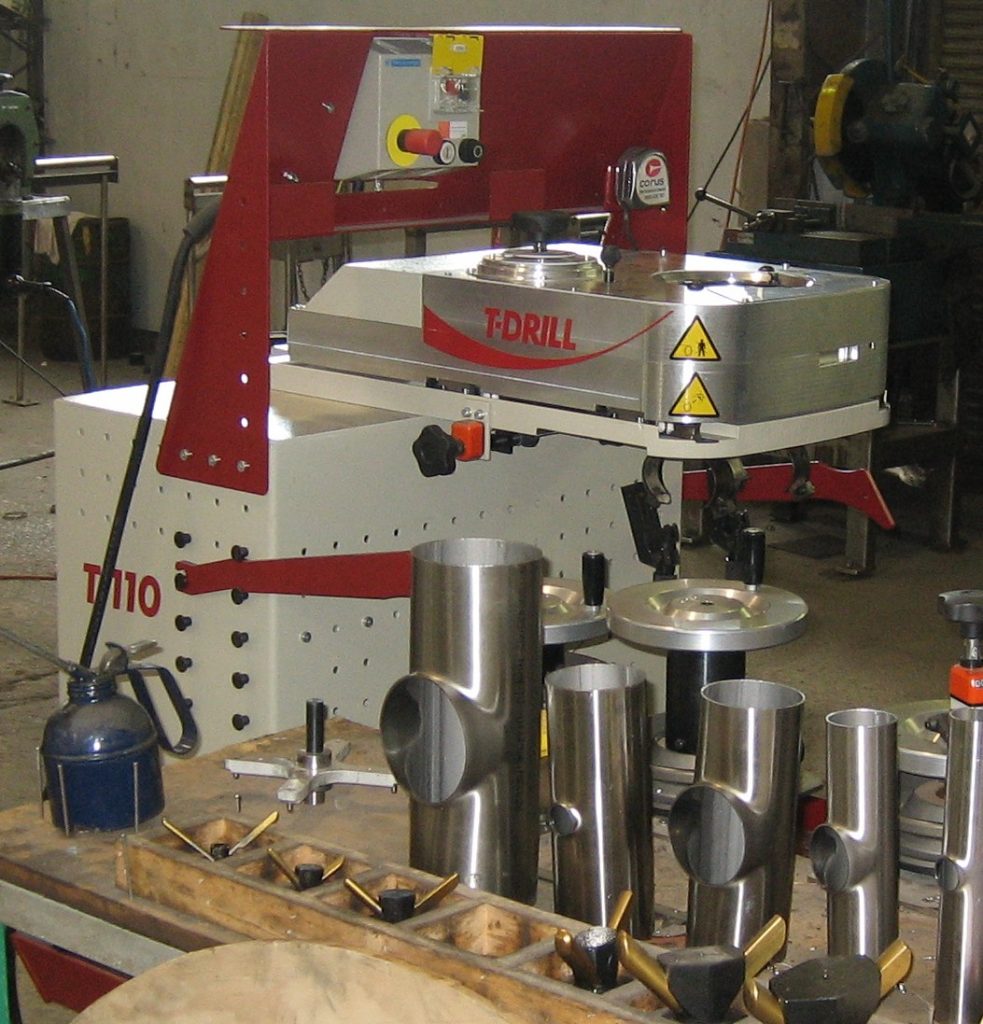

Tubular Tee Puller

Capacity:

Tube or Sch10 pipe range 25mm to 114mm stubs
